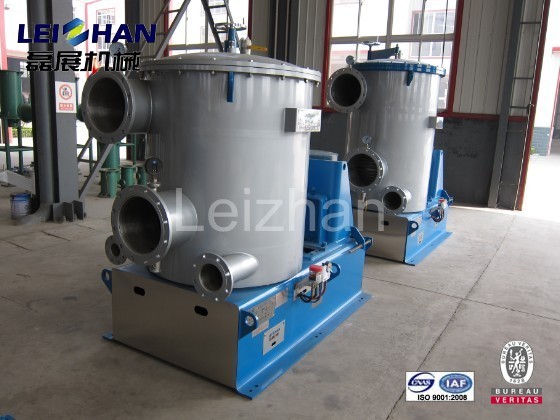

FJS series fiber fractionating screen
FJS series fiber fractionating screen is used for the classification of long and short fiber in the pulp.
FJS series fiber fractionating screen
It is used for the classification of long and short fiber in the pulp.
Features
1. Many wing piece, no winding, efficient and energy-saving rotary drum rotor.
2. Pulp classification in the higher concentration(2~3%), significantly saving the energy.
3. Equipped with automatic oiling device, reduce the maintenance.
4. The -seal water flow automatic detection alarm device ensures the secure operation of the equipment.
Main specifications
| Type | FJS1.2 | FJS2 | FJS3 | FJS4 |
| Screen area (m2) | 1.2 | 2 | 3 | 4 |
| Inlet concentration (%) | 1.5-3 | |||
| Inlet pressure (MPa) | 0.15-0.30 | |||
| Capacity (t/d) | 120-190 | 200-300 | 300-450 | 350-750 |
| Motor power (Kw) | 55 | 90 | 110 | 132 |
